| Active Carbon Material: | Shell Activated Carbon |
| Carbon Content: | High-Carbon |
| Pore Diameter: | Microporous |
| Manufacturing Method: | Physical Method of Activated Carbon |
| Type: | Gold Recovery |
| Appearance: | Granular |
Description
Basic Info.
Model NO.: ZLGAC
Usage: Environmental Protection Industry, Chemical Industry, Food Industry, Electric Power Industry, Petrochemical Industry, Gold Industry
Physical Properties: Specific Surface Area
Chemical Properties: Ph Value
Adsorption Properties: Carbon Tetrachloride Adsorption Value
Iodine Value: 900-1200mg/G
Ctc: 50-60%
Moisture: 3-5%
Ash: 3-5%
pH: 8-10
Transport Package: 25kg/Bag, 500kg/Bag or Customized Bag
Specification: 6*12mesh, 4*8mesh, 5*10mesh
Trademark: Tairan chemical
Origin: China
Production Capacity: 6000ton/Year
Product Description

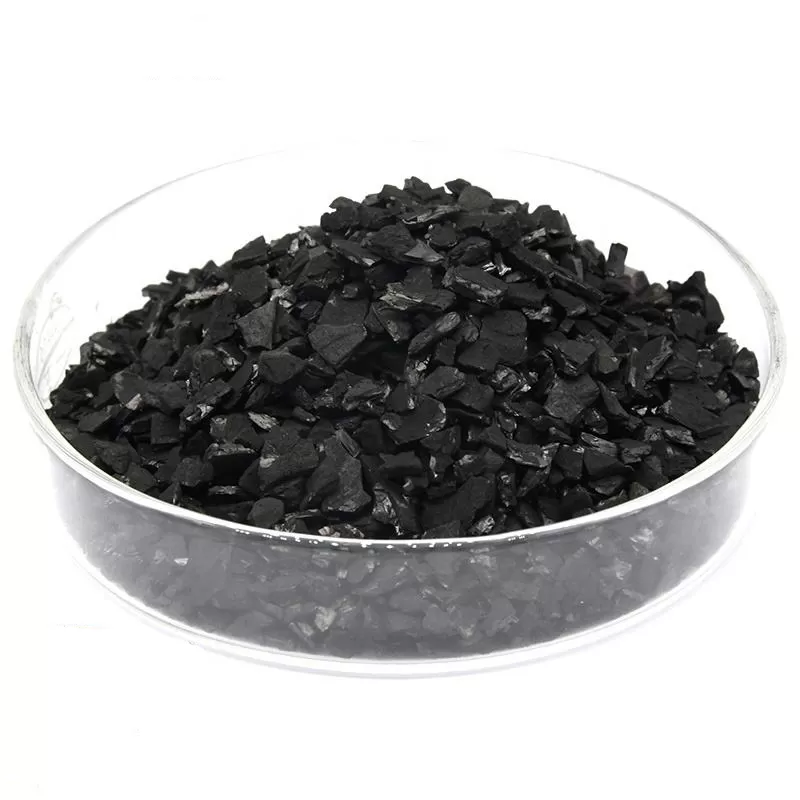

The particle shape of gold extraction activated carbon is full, uniform, greatly improved the wear strength of the product, no need to perform pre-ground after entering the factory, can be used directly after water is washed. High-quality activated carbon is vital to the gold extraction operation. Using activated carbon of optimal hardness minimizes fines and recovers more gold. Our coconut shell activated carbon is used extensively in Carbon in Column (CIC), Carbon in Pulp (CIP) and Carbon in Leach (CIL) applications.
Specifications
| Item | Indicator |
| Particle Size(mesh) | 4-8, 6-12, 5*10 |
| CTC (%) | 50-65 |
| Hardness (%) | ≥ 98 |
| Moisture (%) | ≤5 |
| Iodine Value (mg/g) | 900-1000 |
| Ratio Surface Area(m2/g) | 990-1100 |
| Packing Density (g/cm³) | 0.45-0.55 |
Adsorptive Capacity (known as K-value)
Often called loading capacity, the adsorptive capacity of activated carbon refers to how much the activated carbon can adsorb. Adsorptive capacity is linked to the physical and chemical properties of the activated carbon.
Adsorption Rate (known as R-value)
The rate of adsorption is also largely affected by both physical and chemical properties of the activated carbon.
Mechanical Strength and Wear Resistance/Hardness
Mechanical strength is important in reducing losses because of attrition. Attrition is the breakdown of material into fines. Not only does this result in carbon loss, but it also causes a loss in recoverable gold.
Particle Size Distribution
Particle size distribution is another key factor in choosing an activated carbon for gold recovery, as it is largely linked to adsorption rate.
Coconut shell-based carbons are the most commonly selected type of activated carbon for gold recovery. This type of carbon boasts numerous characteristics that make it ideal for use in gold recovery, including superior hardness and pore structure.
Package
Activated carbon is generally packed with 25kg/bag, 500kg/bag with or without pallet. We can also customize packages according to clients' needs.
